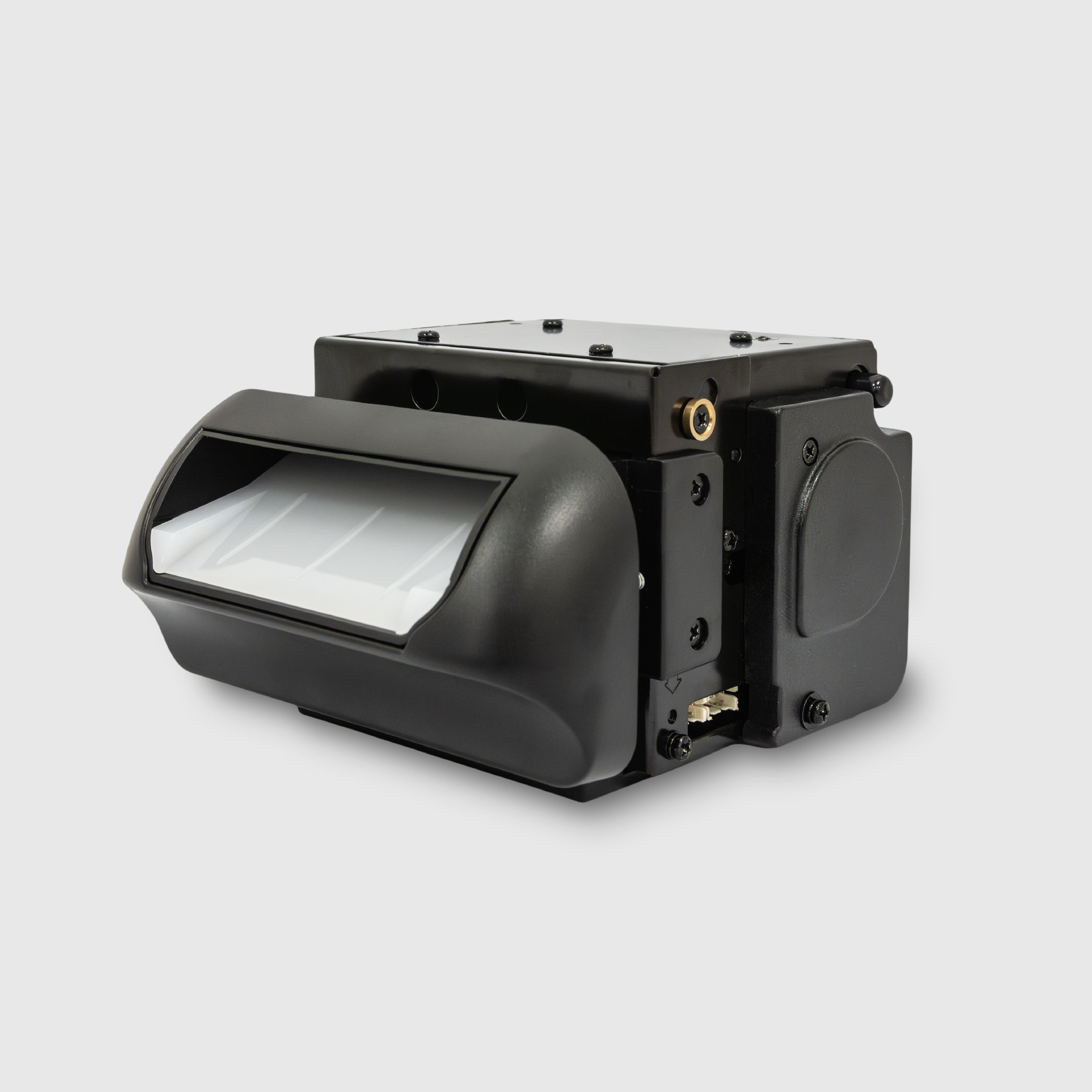

TP83 Bill Acceptor

Overview

    TP series is a new generation of bill acceptor designed by TOPVME which features High-security with acceptance rate up to 96%. In addition,multiple bezel and bill box selections offer users the most convenient and complete services.

Applications

  • Gaming Machine
  • Massage Chair
  • Washing Machine
  • Dryer
  • Washeteria
  • Auto-Payment Machine
  • Vending Machine

Features

  • Four ways bill insertion acceptance
  • Hight acceptance rate
  • Multiple bezel selections
  • High security by protective mechanism

Product Information

General

  • Acceptance Rate: 96% or greater
  • Interface: Pulse / RS232、
         Pulse / ccTalk、Pulse / TOP101
  • Installation: Indoor
  • Bill Insertion: Four way acceptable

Electrical

  • Power Source: 12V DC ± 5%
  • Power Consumption:
         Standby: 350 mA / 4.2W
         Operation: 2A / 24W
  • Temperature Range:
          Operating Temperature: 0°C ~ 60°C
          Storage temperature: -10°C ~ 80°C
          Humidity: 20% ~ 70% RH
                        (no condensation)

Mechanical

  • Weight: Approx. 0.70kg
  • Outline Dimension: 105 x 125 x 133 mm
  • Cash Box: N/A
  • Bill Accepted Width: 68 ~ 83 mm
