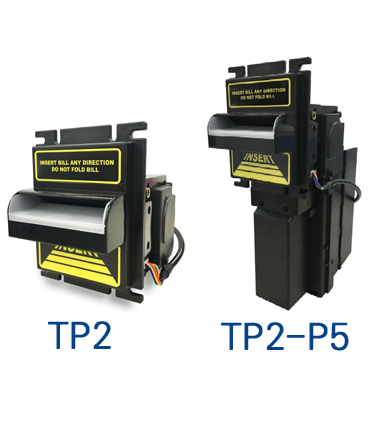

TP2 / TP2-P5 Bill Acceptor

TP2 / TP2-P5 Bill Acceptor

TP2 Middle Bezel

TP2 Middle Bezel

Overview

    TP series is a new generation of bill acceptor designed by TOPVME which features High-security with acceptance rate up to 96%. In addition,multiple bezel and bill box selections offer users the most convenient and complete services

Applications

  • Gaming Machine
  • Massage Chair
  • Washing Macine
  • Dryer
  • Washeteria
  • Auto-Payment Machine
  • Vending Machine

Features

  • Four ways bill insertion acceptance
  • Hight acceptance rate
  • Multiple bezel selections
  • Stacker with capacity of 500 bill are available
  • High security by protective mechanism

DIP SWITCH

    調整pulse倍率、pulse速度、收鈔狀態...等功能。

Product Information

TP2 Specification

  • Bill Box: N/A
  • Weight: Approx.0.70 kg (Without Bill Box)
  • Accepted bill width: 66 ~ 77mm
  • Bill Insertion: Four way acceptable
  • Interface: Pulse / RS232、
         Pulse /ccTalk、Pulse / ID003

TP2-P5 Specification

  • Bill Box: Yes
  • Bill Box Capacity: Approx. 500 pcs
  • Weight: Approx. 1.55kg
  • Accepted bill width: 66 ~ 77mm
  • Bill Insertion: Four way acceptable
  • Interface: Pulse / RS232、
         Pulse /ccTalk、Pulse / ID003

Electrical

  • Power Source: 12VDC± 5%
  • Power Consumption: 12V DC
         Standby: 350mA / 4.2W
         Operation: 2A / 24W
  • Temperature Range:
         Operating Temperature: 0° C~60° C
         Storage Temperature: -10° C~80° C
         Humidity: 20%~70% RH
                   (no condensation)

DM/Manual

Software

rar

TP70 Calibration

TP70PA/PB Card calibration software.
Size: 704.27 KB

Currencies accepted and DipSetting

Under Construction
